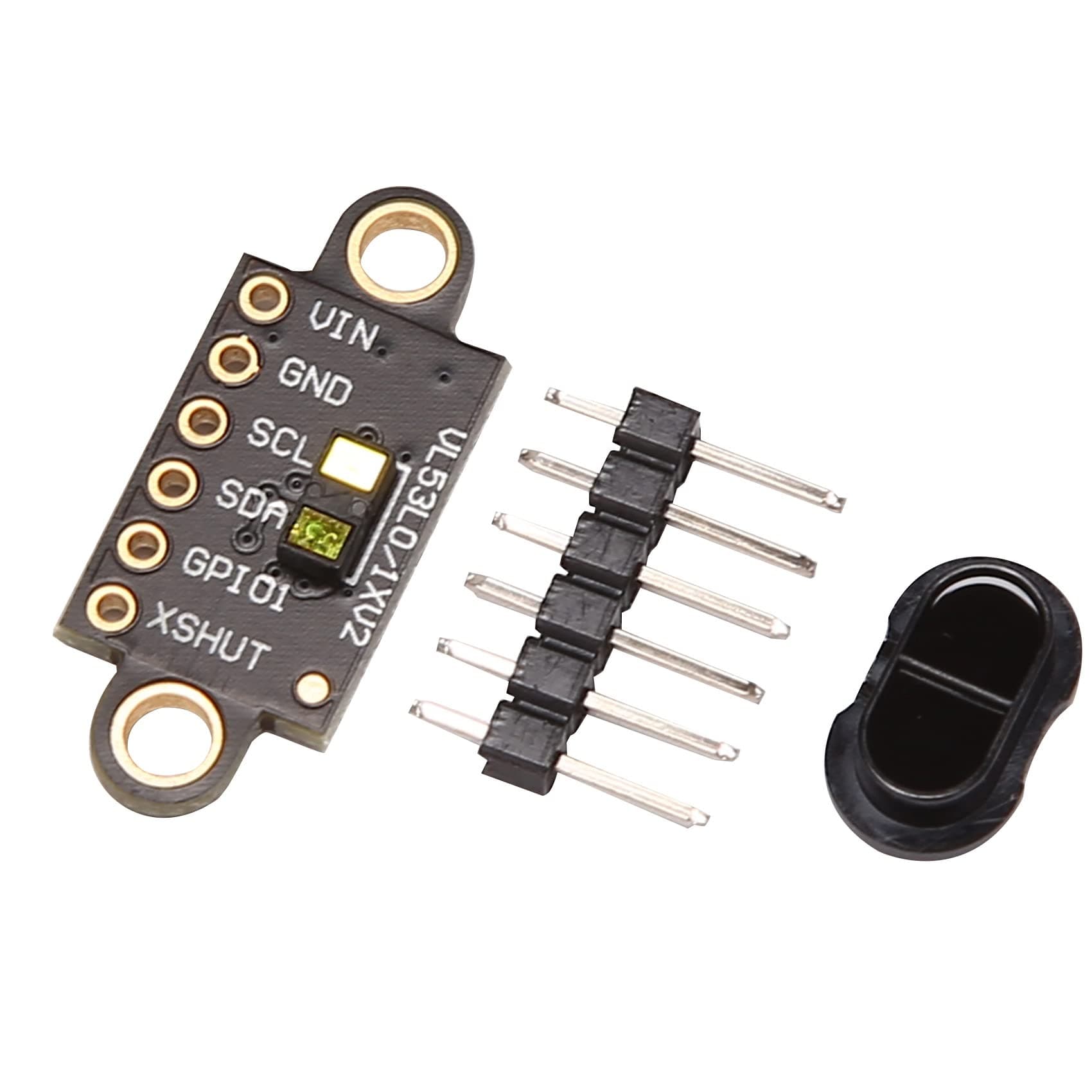

VL53L1X Laser Ranging Sensor Module

VL53L1X Laser Ranging Sensor Module

<u>VL53L1X</u> is <mark>an advanced Time-of-Flight (ToF) laser-ranging sensor</mark>.

Features:

Ranging measurements are available through the sensors I²C (TWI) interface, which is also used to configure sensor settings,

• and the sensor provides two additional pins: a shutdown input and an interrupt output

• It operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V

• Our breakout board addresses these issues, making it easier to get started using the sensor while keeping the overall size as small as possible


**PIN Description:

• VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator,

• you can instead use this pin as a 2.8 V input with VIN disconnected.)

• VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C lines high to this level

• GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board.

• SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V

• SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V

• XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted
