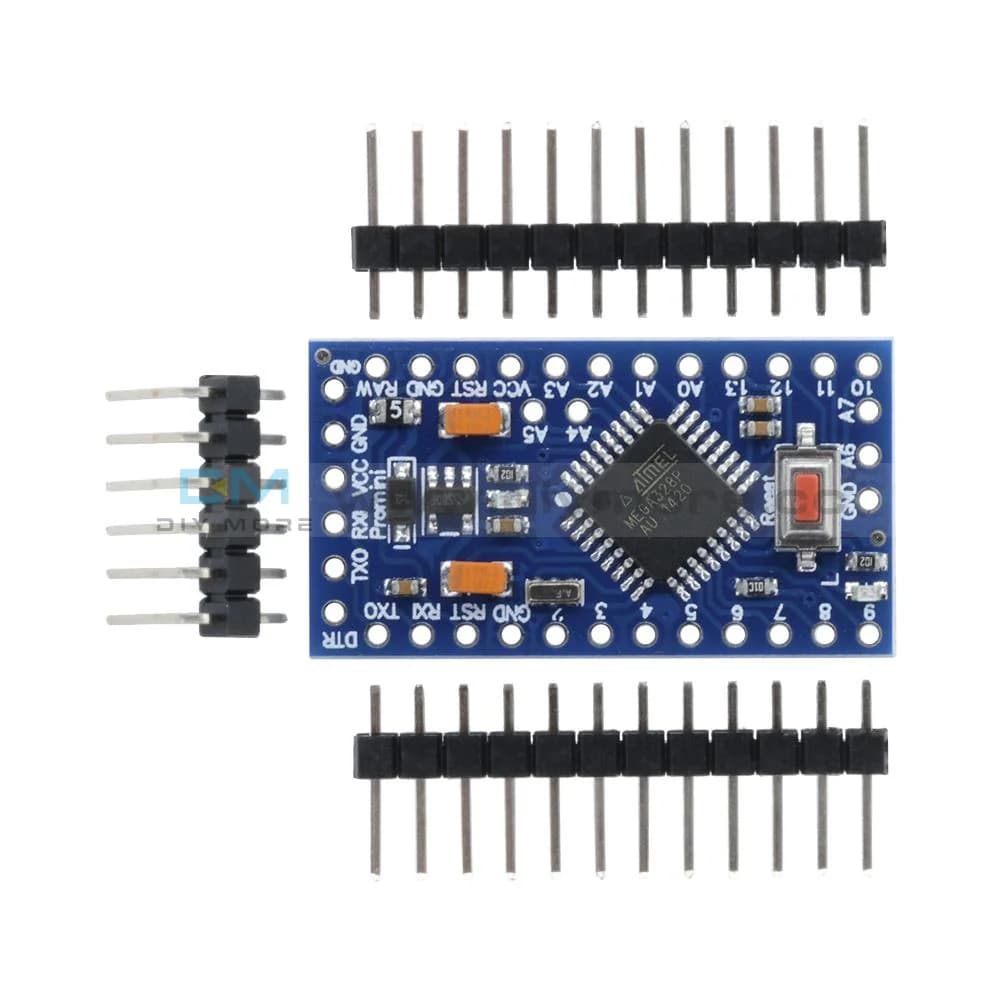

Pro Mini 5V/16M ATMEGA328P

Pro Mini 5V/16M ATMEGA328P

15,000 MMK

SKU Code

MCU0002

Availability

Out Of Stock

Categories

  • Microcontroller

Description

The Arduino Pro Mini is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connected to an FTDI cable or Sparkfun breakout board to provide USB power and communication to the board. The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.

Specifications

Tech Specs

SpecificationDetails
MicrocontrollerATmega328P *
Board Power Supply5 - 12 V (5V model)
Circuit Operating Voltage5V
Digital I/O Pins14
PWM Pins6
UART1
SPI1
I2C1
Analog Input Pins6
External Interrupts2
DC Current per I/O Pin40 mA
Flash Memory32KB of which 2 KB used by bootloader *
SRAM2 KB *
EEPROM1 KB *
Clock Speed16 MHz (5V versions)

Older boards were equipped with ATmega 168 with these specs:

  • Flash memory: 16 KB
  • SRAM: 1 KB
  • EEPROM: 512 bytes
