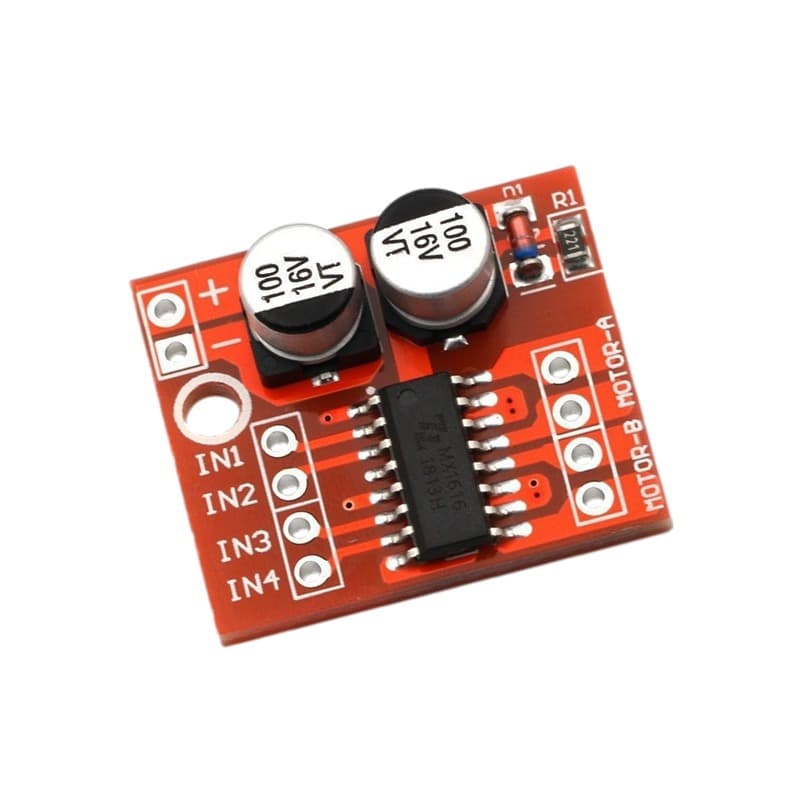

MX1508 2 Channel Motor Driver

MX1508 2 Channel Motor Driver

3,500 MMK

SKU Code

MTD0025

Availability

In Stock

Categories

  • Motor & Driver

Description

MX1508 DC Motor Driver is a low-cost motor driver module that can control DC stepper motors of current rating up to 2A. The MX1508 IC has an integrated two H-channel drive circuits designed with N-channel and P-channel power MOSFETs which are suitable to control motors for toy cars and other applications. The module also has a built-in thermal protection circuit and a common conduction circuit which helps in preventing malfunction of the motor if the input pins are left floating.

Specifications

The section mentions a few of the features and specifications of the MX1508 motor driver:

  • Module supply Voltage: 2-10V DC
  • Voltage output: 1.8-7V DC
  • Operating Current: 1.5A
  • Peak current:2A
  • Low standby current (less than 0.1uA)
  • Integrated H-bridge driver circuit
  • Dual H-bridge motor driver
