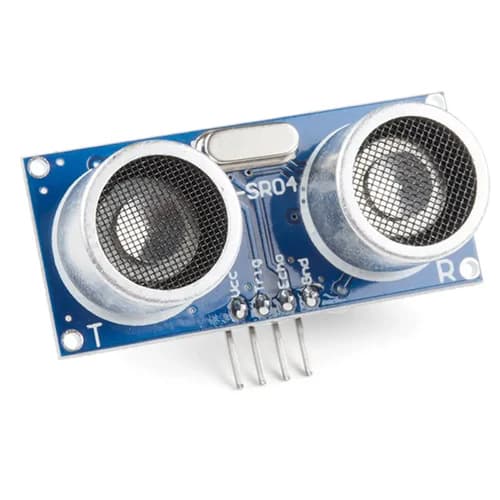

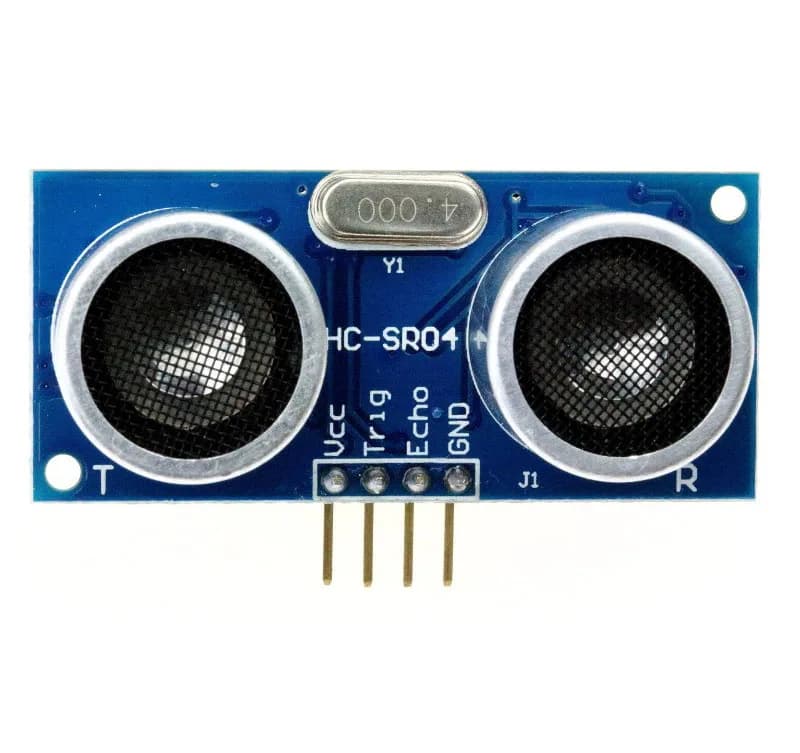

HC-SR04 Ultrasonic Sensor
HC-SR04 Ultrasonic Sensor
HC-SR04 Ultrasonic Sensor

HC-SR04 Ultrasonic Sensor

5,500 MMK

SKU Code

SS0056

Availability

In Stock

Categories

  • Sensor

Description

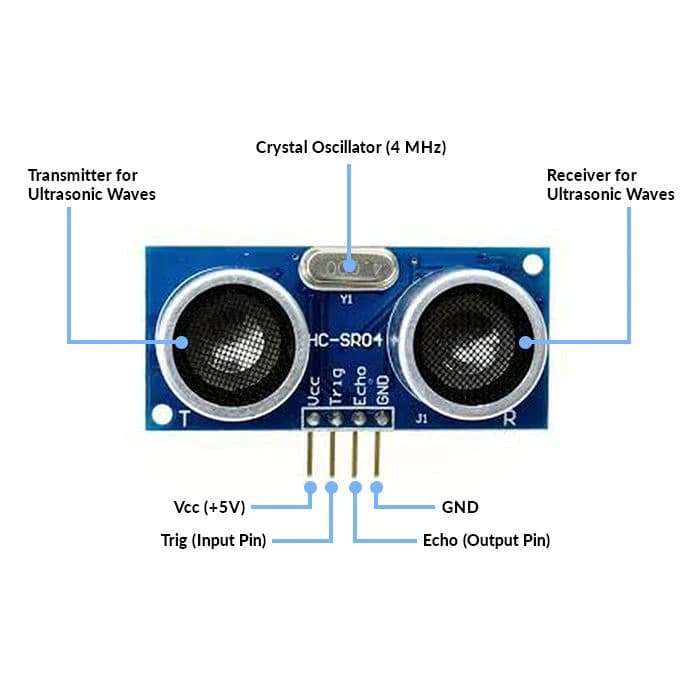

The HC-SR04 is a popular, low-cost ultrasonic sensor measuring 2cm-400cm (2in-13ft) with ~3mm accuracy, using 5V power and 40kHz ultrasonic waves, featuring Trigger (Input) and Echo (Output) pins for distance calculation based on sound travel time. Key specs include a <15° detection angle, 10µS trigger pulse, <15mA current draw, and standard 45x20x15mm dimensions, working with microcontrollers like Arduino.

Specifications

  • Operating Voltage: 5V DC
  • Operating Current: <15mA (Working), <2mA (Static)
  • Working Frequency: 40kHz
  • Ranging Distance: 2cm to 400cm (0.8" to 13ft)
  • Accuracy: ±3mm (0.3cm)
  • Measuring Angle: <15° (or ~30° cone)
  • Trigger Input: 10µS TTL pulse
  • Echo Output: TTL level, proportional to distance
  • Dimensions: ~45mm x 20mm x 15mm
