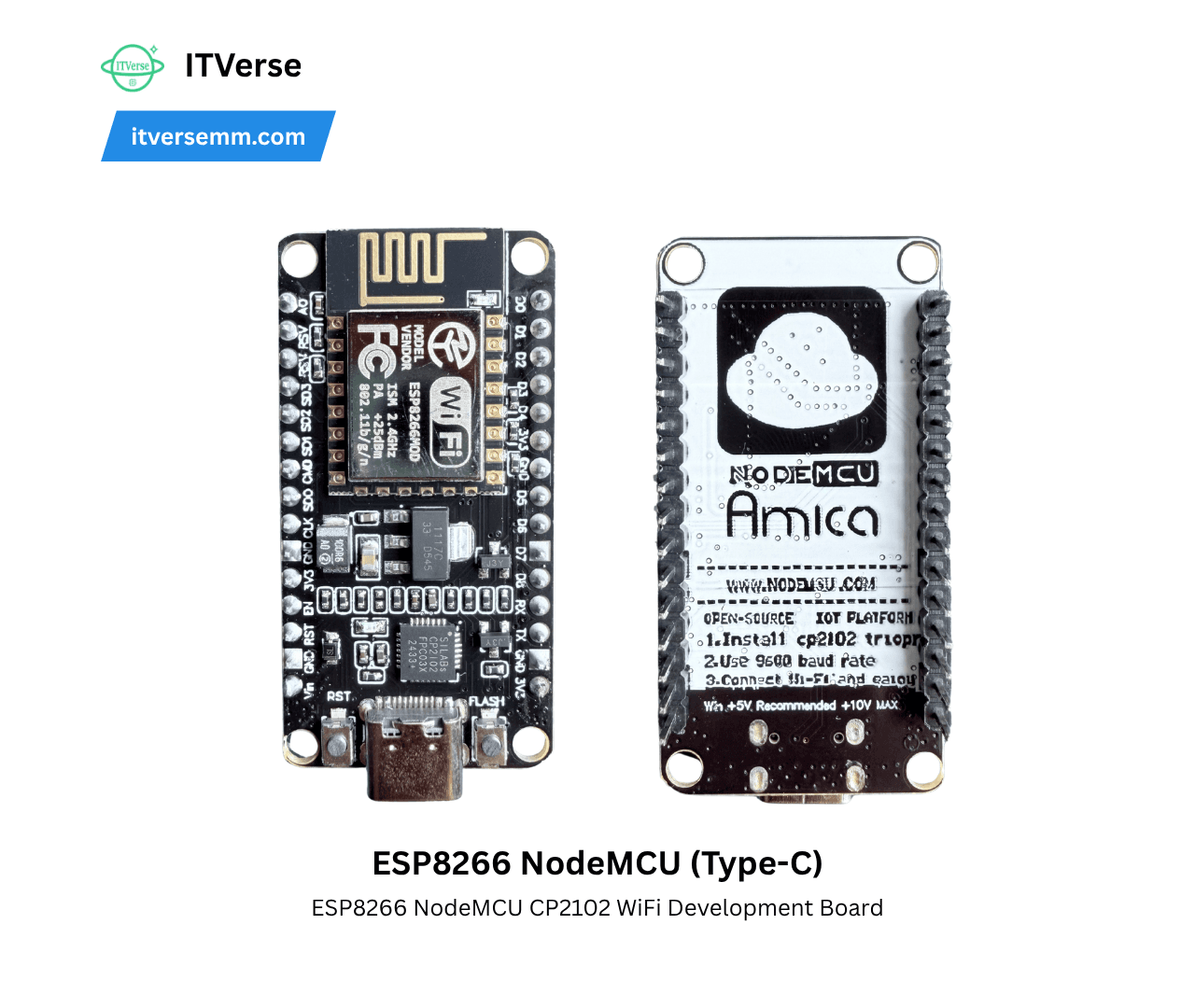

ESP8266 Node MCU Type C
21,000 MMKSKU Code
MCU0005
Availability
In Stock
Categories
- Microcontroller
Description
This is one of the most popular ESP8266 development boards. It has 4MB of flash memory, 11 GPIO pins, and one ADC pin with 10-bit resolution. This is what we use more often in our Wi-Fi and IoT projects. It is extremely versatile and perfect for beginners.
Specifications
- Microcontroller: Tensilica 32-bit RISC CPU Xtensa LX106
- Operating Voltage: 3.3V
- Input Voltage: 7-12V
- Digital I/O Pins (DIO): 16
- Analog Input Pins (ADC): 1
- UARTs: 1
- SPIs: 1
- I2Cs: 1
- Flash Memory: 4 MB
- SRAM: 64 KB
- Clock Speed: 80 MHz
- USB-TTL based on CP2102 is included onboard, Enabling Plug n Play
- PCB Antenna
Nodemcu ESP8266 Pinout:
ESP8266 Nodemcu
For practical purposes ESP8266 NodeMCU V2 and V3 boards present identical pinouts. While working on the NodeMCU based projects we are interested in the following pins.
- Power pins (3.3 V).
- Ground pins (GND).
- Analog pins (A0).
- Digital pins (D0 – D8, SD2, SD3, RX, and TX – GPIO XX)
Most ESP8266 NodeMCU boards have one input voltage pin (Vin), three power pins (3.3v), four ground pins (GND), one analog pin (A0), and several digital pins (GPIO XX).
| Pin | Code | Arduino Alias |
|---|---|---|
| A0 | A0 | A0 |
| D0 | GPIO 16 | 16 |
| D1 | GPIO 5 | 5 |
| D2 | GPIO 4 | 4 |
| D3 | GPIO 0 | 0 |
| D4 | GPIO 2 | 2 |
| D5 | GPIO 14 | 14 |
| D6 | GPIO 12 | 12 |
| D7 | GPIO 13 | 13 |
| D8 | GPIO 15 | 15 |
| SD2 | GPIO 9 | 9 |
| SD3 | GPIO 10 | 10 |
| RX | GPIO 3 | 3 |
| TX | GPIO 1 | 1 |
