AS608 Fingerprint Sensor
AS608 Fingerprint Sensor

AS608 Fingerprint Sensor

60,000 MMK

SKU Code

SS0070

Availability

Low Stock

Categories

  • Sensor

Description

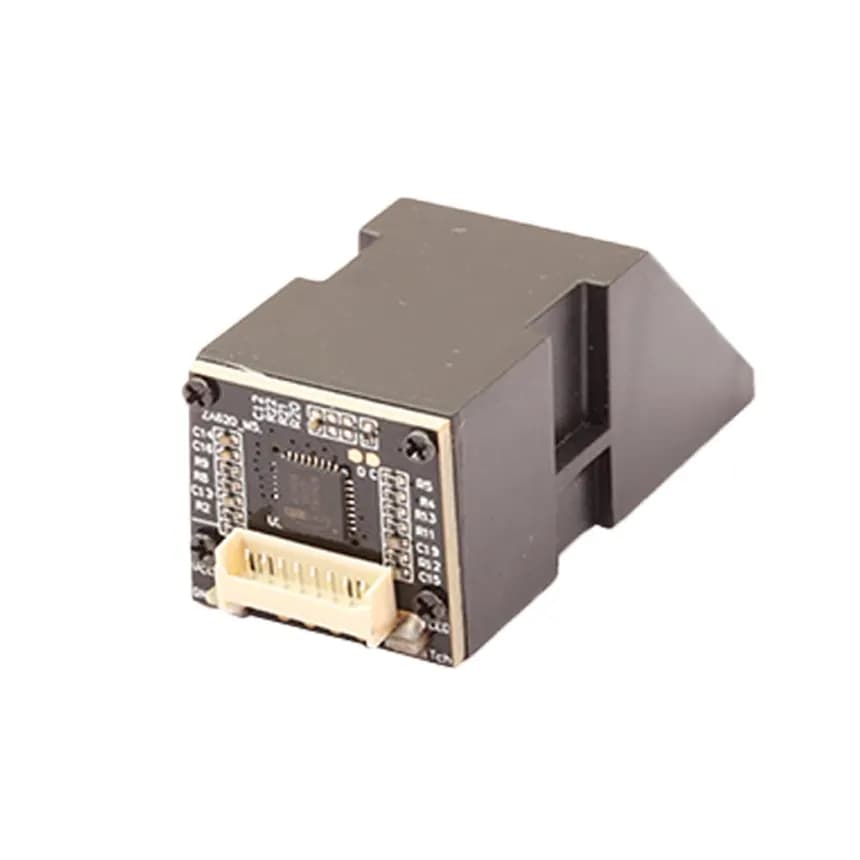

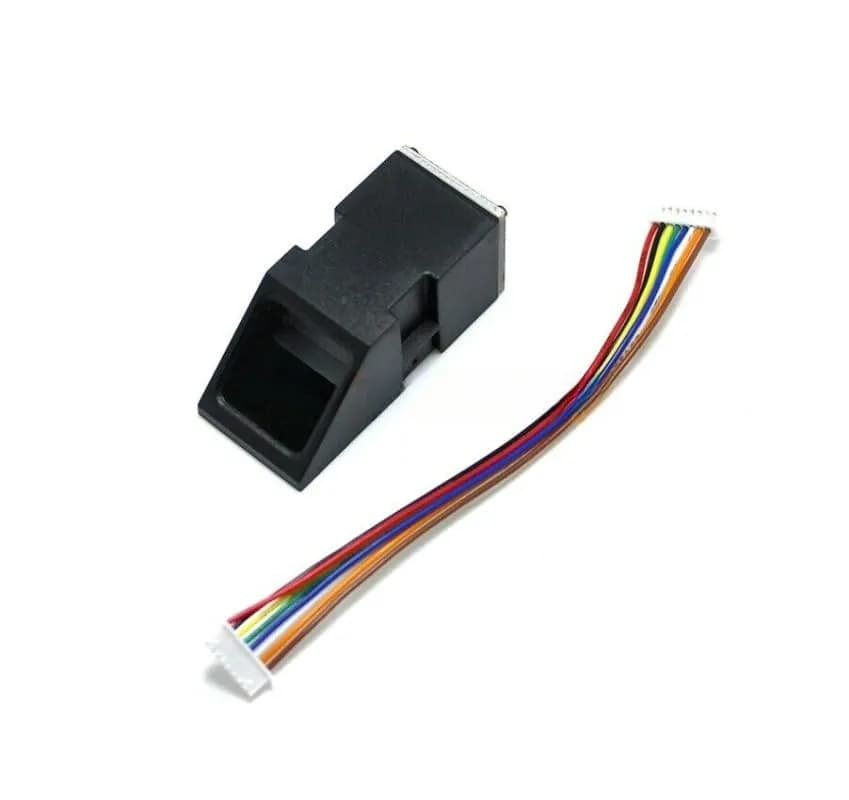

The AS608 is a compact, optical fingerprint sensor module using a simple TTL serial (UART) interface, capable of storing 162 fingerprints, capturing images at 500 dpi, and featuring <0.001% FAR/ <1.0% FRR, running on 3.3V-6V power, making it ideal for Arduino/microcontroller projects needing easy fingerprint ID and verification.

Specifications

  • Technology: Optical Fingerprint Sensor
  • Resolution: 500 DPI
  • Storage: Up to 162 fingerprints (or 127 in some listings)
  • Interface: UART (TTL Serial)
  • Voltage: 3.3V - 6V DC
  • Current: Max 120mA (Peak 150mA)
  • FAR/FRR: <0.001% / <1.0%
  • Imaging Time: <1 second (max)
  • Template Size: 512 bytes
  • Window Area: 14mm x 18mm
  • Working Temp: -20°C to +50°C
  • Dimensions: ~56 x 20 x 21.5mm
